RAID Setup

The following steps will explain you how to setup RAID 1 on a Linux Server:-

Make sure you backup all-important data before using this tutorial. I will be not responsible for data loss.

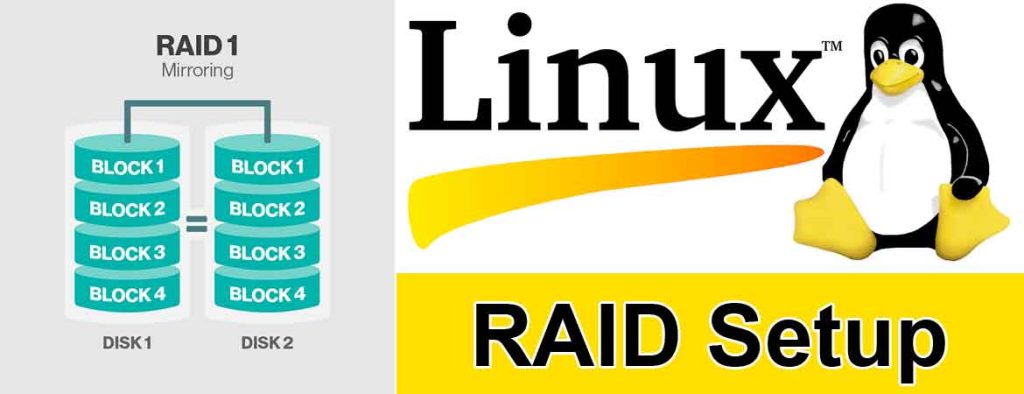

But what is a RAID 1?

A single hard drive is mirrored i.e. an exact copy is made of the original drive. Thus, it result into the increased fault tolerance and easy data recovery option for single server.

Why I am setting a RAID-1 on running system?

Old system admin did not setup RAID -1 at the time of installation. It is true that the best and easy way to setup a RAID 1 is during installation. Simply create RAID software partition and install the system. Nevertheless, it wasn’t done during installation; so I was asked to do so.

Procedure

Setting up RAID 1 mirroring is easy on running system. Recently we ordered new dedicated hosting server. But they did not setup mirroring for 2 hard disk. My setup was as follows:

/dev/hdb (/dev/hdb1 40 GB)
/dev/hdc (/dev/hdc1 40 GB)

Each partition has been 40 GB size ext3 formatted (make sure partition id is set to Linux raid auto).

RAID tools and software was installed. It is called mdadm.

Remember first software device will be /dev/md0, second will be /dev/md1 and so.

You need to type following command to setup /dev/md0:

Code:

mdadm –create /dev/md0 –level=1 –raid-devices=2 /dev/hdb1 /dev/hdc1

You can see status, health of /dev/md0 at /proc/mdstat. Type the following command:

Code:

cat /proc/mdstat

Better uses watch command to refresh it automatically:

Code:

watch cat /proc/mdstat

Format /dev/md0 as ext3 fs:

Code:

mkfs.ext3 /dev/md0

Mount /dev/md0 at /data2 directory:

Code:

mkdir /data2
mount /dev/md0 /data2
Don’t forget to add /dev/md0 to /etc/fstab:

Code:

vi /etc/fstab

Append following text:

Code:

/dev/md0                /data2                       ext3    defaults        0 0
